Description:
- Type of lamp LED
- Type of LED Osram
- PCS LED´s 16
- Voltage (V DC) 9-32V DC
- Theoretical effect (w) 12V 80
- Theoretical effect (w) 24V 80
- Consumption (w) 12V 69.1
- Consumption (w) 24V 70.1
- Theoretical lumen 9600
- Actual lumen 3584

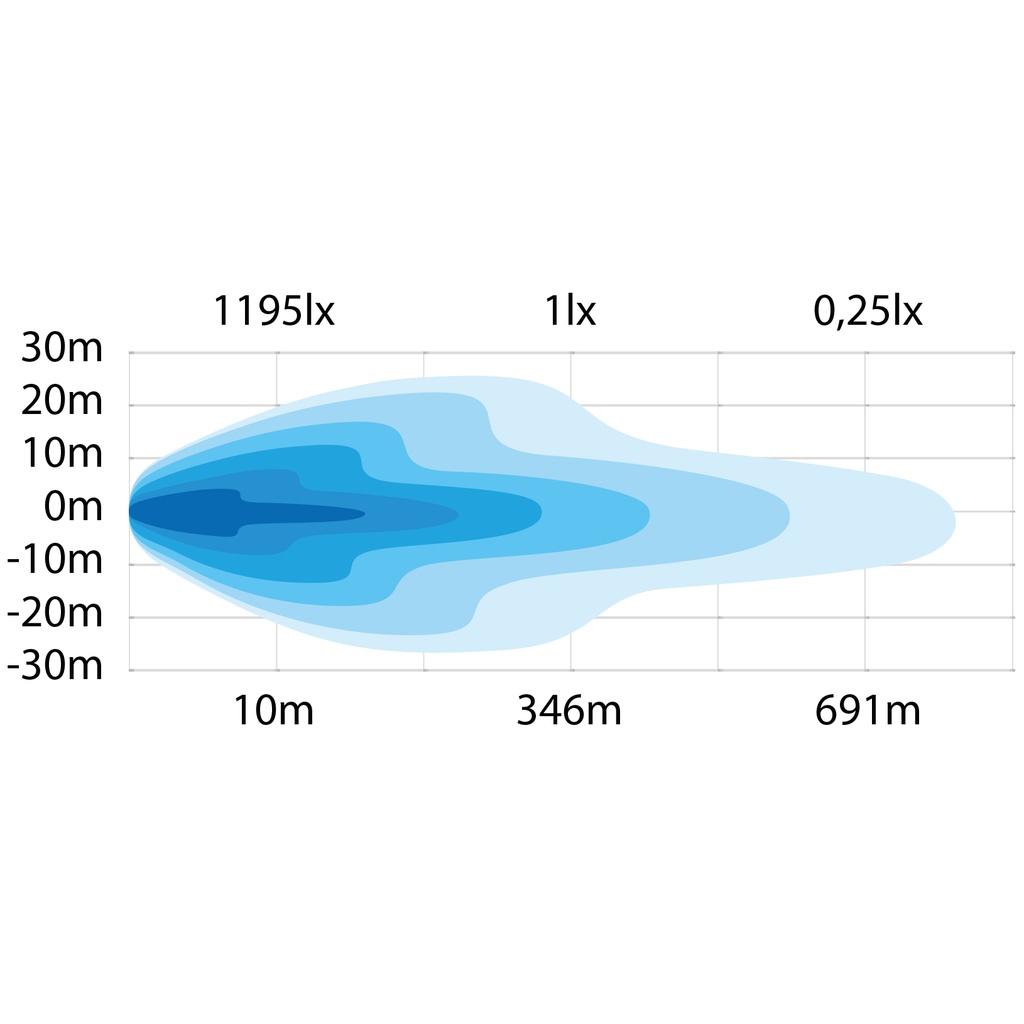

- 1 LUX @ m 346
- Kelvin 3568
- IP-class 67/69K
- Colour housing Black
- Colour lens Yellow
- Colour LED´s White and Amber
- Beam pattern Flood
- Position light Yes. amber and white
- Connection DT-4
- Cable length (mm) 500
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 178
- Depth (mm) 78.2
- Height (mm) 178
- Height including bracket (mm) 194.7
- Diameter (mm) 178
- Operating temperature -30°C – +65°C
- E-approved No
- EMC ECE R10
